MÁY ÉP NHŨ TỰ ĐỘNG MK Promatrix 106FC
Foil Stamping Machine Promatrix 106FC

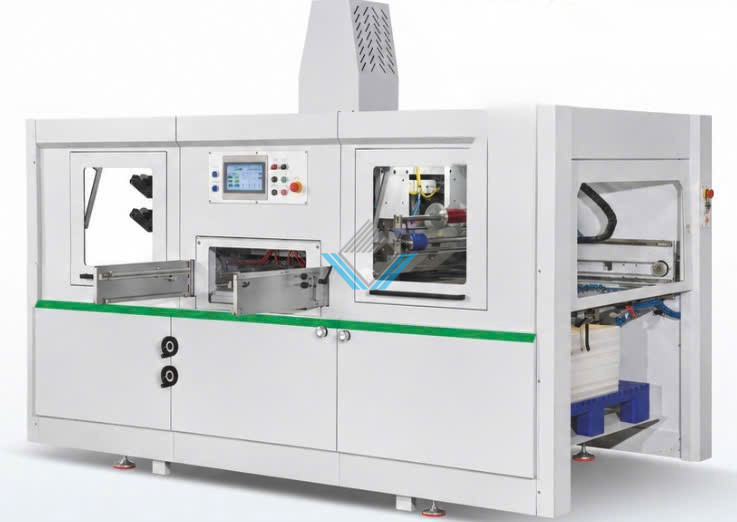

Hình ảnh máy ép nhũ tự động MK Promatrix 106FC:
(The picture is only for reference, please make the object as the standard.)
Video máy ép nhũ tự động MK Promatrix 106FC:
Giới thiệu về thương hiệu MK – Masterwork:
Technical specifications of equipment
1. Technical specifications
|
Maximum sheet size: |
: 1060 x 760mm |
| Minimum sheet size |
: 350mm×300mm |
|
Maximum die cutting size |
: 1060 x 745mm |
| Maximum stamping size |
: 1060 x 740mm |
|
Gripper margin |
: 9～17mm |
| Convertible stock |
: Cardboard: 0.1-2mm (80-2000 g/m2) Corrugated: Max. 4.0mm |
| Max. feeder pile height |
: 1,500mm(including pallet) (non-stop feeding pile height: 1200) |
|
Accuracy of sheet registering |
: Die cutting and regular foil: ≦±0.1mm
Hologram stamping: ≤±0.20mm |
| Max. operating pressure |
: 3MN |
|
Max. working speed |
: 7,500 sheets per hour (die cutting) 7,500 sheets per hour (regular foil) 5,500 sheets per hour ( hologram application) |
|
Max. feeder pile height |
: 1,500mm(including pallet) |
| Max. delivery pile height |
: 1,350mm(including pallet) |
| Max. diameter of foil roll |
: Machine direction: 250mm Transversal direction: 200mm Min stamping gap: 2mm |
|
Heating system |
: 20 zones (Individual adjustable from 40-180 ℃) |
| Width of aluminum foil |
: 20～1060mm |
|
Max foil feeding step |
: 740mm |
| Overall dimensions (L x W x H) |
: 6458mm x5170mm(including operation platform)x 3650mm |
|
Weight |
: Approx. 20000kg |
| Main motor power |
: 11KW |
|
Rated power |
: 30KW |
| Full load power |
: 54.9KW |
|
Width of aluminum foil |
20～1060mm |
| Power supply |
: 380V/50Hz/3-phase with grounding |
|
Compressed air requirements |
: Pressure: 0.6~0.7Mpa, flow>0.8 m3/min |
Standard specification
- Non-stop high-speed feeding unit
- Non-stop high-speed sheet feeding unit
- The stream type paper feeder has its max speed more than 133 pages per minute.
- Sheet slow down
- Height& angle adjustment of 4 lifting and 4 forwarding suckers, 4 lifting sucker only angle / 4 forwarding suckers height (only outer one angle adjustment)
- 3 feeder anti-collision devices
- Motorized lateral paper pile adjustment ±20 mm.
- Electric side horizontal blower and paper proctor device
- Push and pull side guide
- Vacuum feeding table
- Feeding chase uplifts by cylinder device.
- Ultrasonic, mechanical double detector
- Side guide and front guide paper photoelectric detection
- The single point electromagnetic positioning clutch, which separately drives the main machine and feeding unit, it will be easier to operate.
- Manual non-stop feeding system.
- Powerful sheet suction feeder with four suction heads and four feeding heads for adjusting sheet suction angle according to sheet deformation.
- The suction and sliding valve are made from superhard alloy.
- Paper pressing belt and brush roller components (2 sets)
- Brush roller components (each 4 sets , soft and hard)
- Paper pressing wheel combinations (10 sets)
- Three kinds of paper pressing ball assemblies (2 sets on each side)
- Paper inserting rod 1 set
- Pre piling device
- Becker vacuum pump
- Pallet 2pcs (1060mm *750mm)
- Die cutting unit
- Servo drive pressure regulating mechanism
- Full set of worm gear and worm
- The die-cutting lower base plate is equipped with a 3+1.2mm steel plate.
- 2mm die cutting plate 2 pcs.
- Cutting chase and honeycomb chase turnover device
- Lubricating oil cooling and lubricating system for the main transmission box
- Torque limit overload protection.
- Overload protection with pneumatic clutch.
- Complete set of gripper bar with adjustable system,7 pcs total. (7 groups).
- Strengthened drive chain
- Main drive pneumatic clutch brake device
- Die cutting frame bidirectional pneumatic locking system
- Lower cutting-plate pneumatic locking system.
- Electric heating system, 20 heating zone, individual adjustable from 40-180 degree C.
- 1 Spare gripper bar
- Quick lock die cutting chase 1 set.
- Hot foil stamping unit
- 3 Longitudinal shafts driven by servo motor.
- 2 transversal shafts driven by servo motor.
- Longitudinal foil feeding shaft could be run for two directions.
- Foil control computer system
- Motorized external brush roller for used foil collecting.
- The temperature is independently controlled in 20 different zones, with the sensitive temperature difference within ± 5°C.
- 6 Sensors for longitudinal foil and 2 sensors for transversal foil break detection.
- Longitudinal and transversal blowers
- Honeycomb chase 2 sets
- Telescopic foil feeding frame
- Foil preparation stand 1 set
- Delivery unit
- Bidirectional pneumatic paper aligning device
- Motorized paper break brush
- Blower bar from upper side and front side for smooth paper collection
- Rolling carpet for non-stop delivery
- Pneumatic flap for test sheet removal
- Pallets 2 pcs (1060mm*750mm)
- Electrical unit
- Electrical cabinet 1set (at the feeder section)
- Foil stamping control cabinet 1set
- GS – certification
- CE – certification
- Others
- Steel operation platform 1 set
- Sample checking table 1 set
- Tool box 1 set
- Operator manual 1 set
- 1x maintenance manual
- 1x spare part book
- HMI languages: English and Chinese, other languages up on request (before delivery)
- Operator manual for foil stamping control system
